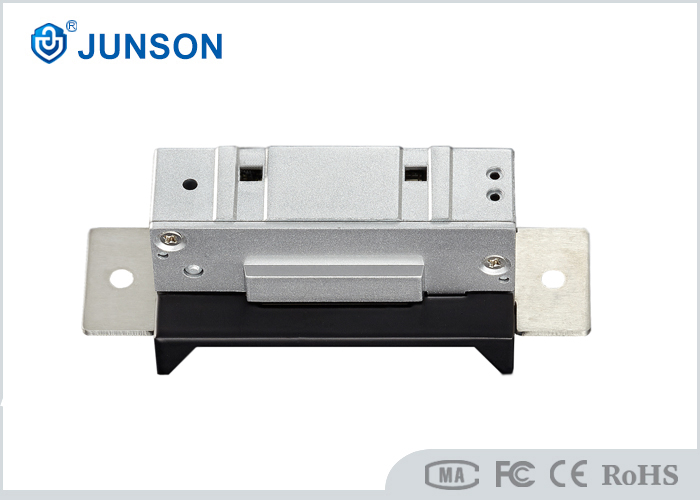

Heavy Duty Electric Strike Lock Zinc Die Casting ANSI Standard
JS-136 is designed for the door with narrow frame.The special design is that the spring bolt can be adjusted to be open all the time.The products of our company is variety and full-equipped
Specifications:
| Lock Dimension: | 123Lx43Wx42H(mm) |
| Strike Structure | Zinc die- casting |
| Holding Strength | 800kg |
| Materials: | Stainless Steel |
| Voltage : | 12V DC / 24V DC (customized) |
| Current : | 320mA |
| Available lock | Rim lock, mechanical lock |
| Suitable for | Narrow wooden door, narrow metal door |
| Special design | NO / NC /COM - available for JS-138S |
| Surface Temp: | ≦20℃, |
| Operating Temp: | -10~+25 |
| Suitable Humidity: | 0-90% (non-condensing) |
| Finishing for lock | Coating nickel |
| Weight: | 0.4kg |
| Standard Packing: | 60pcs |
| Cartons size: | 54L * 20W * 30.5H (cm) |
Feature:
free change between Fail Secure and Fail Safe (loose the screws in lock side,
pull out the wires to shown another hole in screw hole and then tighten the screws.
Then strike is fail secure )
Lock signal output: NO / NC /COM - available for JS-136
Quality Guarantee:
Warranty service will be honored if the damage is not caused by human, Junson provides 3 years warranty for relative products. On the contrary, Junson will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Electromagnetic lock,Electric bolt lock, Electric strike,Access control, Fingerprint access control ,Panic bar,RFID card reader,Hotel door lock,Fingerprint door lock,Panic bar,RFID card reader,RFID card reader,Hotel door lock,Fingerprint door lock,Bracket for electric lock,Exit push button,IP camera,Flap barrier gate,
Electromagnetic door holder
