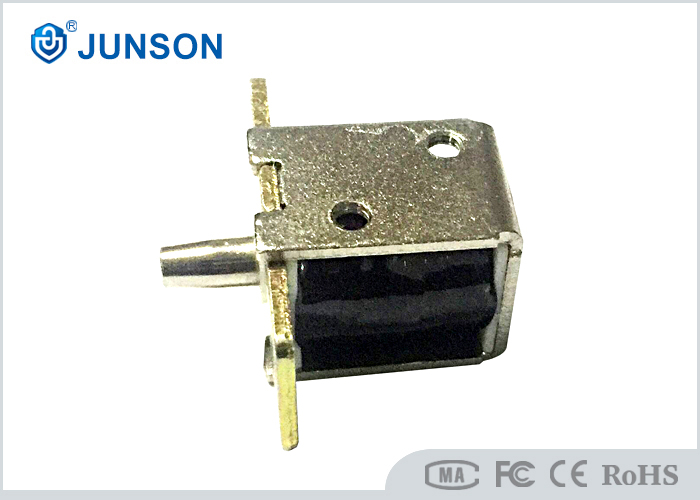

Smallest Intelligent embedding Electric cabinet lock with 4.3mm stroke pole
Model: JS-307
Junson Security made variety of Electric cabinet lock, soleniod lock for all kind of storage cabinet lock, intelligent locker.
Specifications:
| Lock Dimension | 29*20*16mm |
| Stroke | 4.3mm |
| Fail secure | locked when power off |
| Lock pole length | 28.3mm , Round |
| Materials | Fine copper coils |
| Voltage | 12V DC |
| Working Current: | 0.54A |
| Consuming power | 4.8W |
| DC Resistance | 28Ω±10% at 20℃ |
| Duty cycle | Electrify 25% |
| Open time | 1S |
| Continue power on | ≦15S |
| Operation temperature | -5℃ -55℃ |
| Operation Humidity | 5-85℃ |
| Available | storage cabinet lock, mailbox, express locker |
| Weight: | 0.05kg/pcs |
| Packing: | 200pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Electronic characteristics
1. Holding force: stroke 0mm≥300gf, stroke 5mm≥80gf
2. Residual magnetism: After DC 12V applied be return at weight of ironrod 5gf (prependicular direction )
3. Insulation resistance: Between coil and frame Dc 500V normal temperature /humidity, 100MΩ
4. Withstand Voltage: Between coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA
5. Temperature rise: After DC12V applied by resistance method 65 deg Max
6. Life: Repetitious operation for 0.5 million cycle (continuous at DC12V)
7. Lead-wire strength: adding 0.5kgf (random direction) not chip off

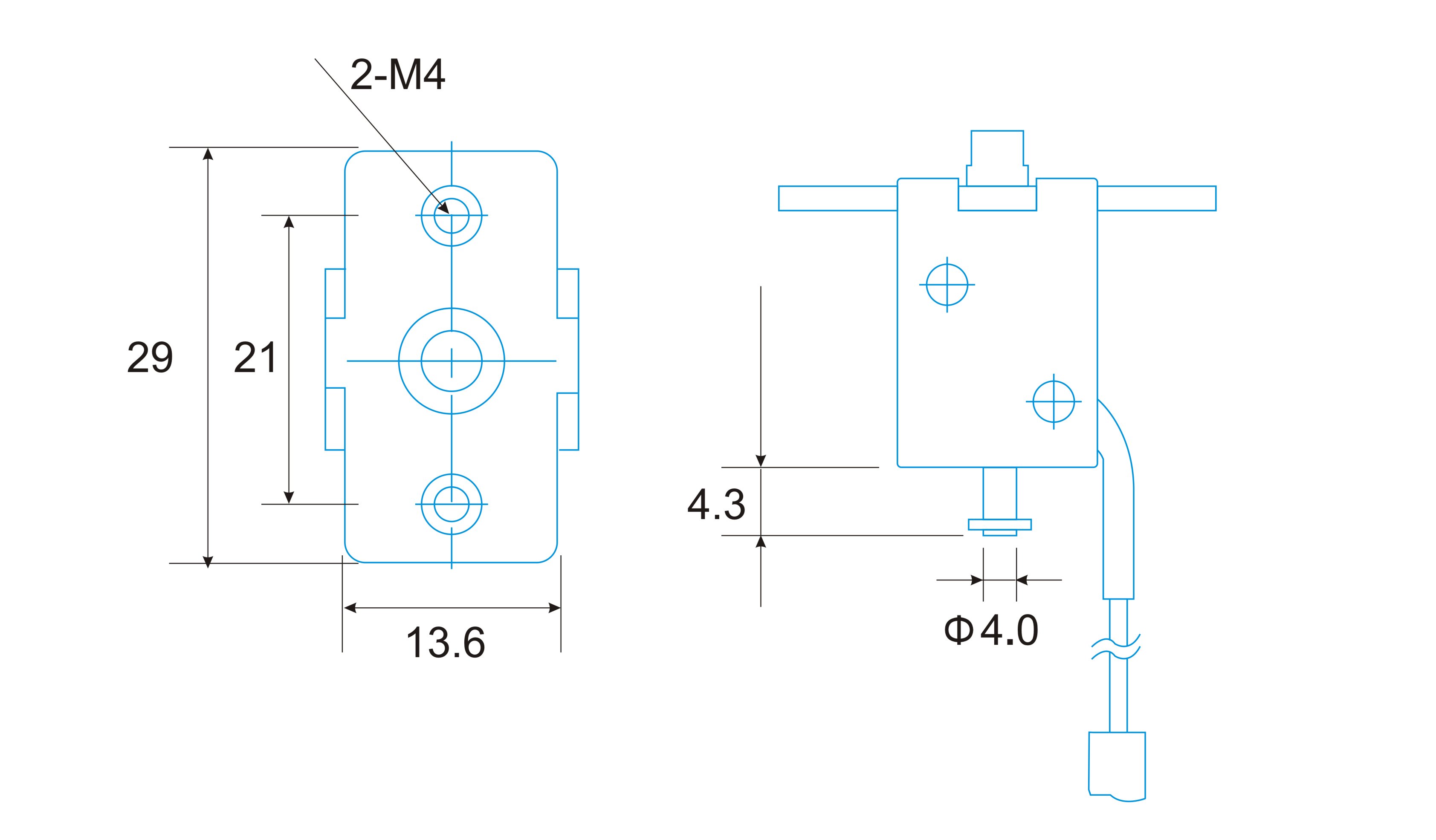

Lock Size drawing:
Why Choose JUNSON:
1. Junson security specail made all kindly of locks, like magnetic lock, bolt lock, soleniod lock since 2004,
2. Junson security have strict quality control system during materials, production and leaving factory
3. All productions will be given 3 years warranties, and whole life technical supporting
