29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock

Product Categories
Shen Zhen Junson Security Technology Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock

  • 1
  • 2

Brand Name : JUNSON

Model Number : JS-304S

Certification : CE/FCC

Place of Origin : China

MOQ : 100pcs

Price : USD3.25 - 5.50 /cps

Payment Terms : T/T, paypal or western Union in advance

Supply Ability : 5,0000pcs per month

Delivery Time : 5 working days after received your payment

Packaging Details : 980cartons per 20" container

Voltage : 12V

Operation Humidity : 0-80℃

mico switch : NO output, or NC (customized)

Current : 1A

working type : Un locked when power on

Product Name : Electric cabinet lock

Color : silver

Carton Weight : 17kg

Packing Size : 50L*30W*21H (cm)

Contact Now

CE Certification 12VDC 1A ​Silver Electric Cabinet Lock with Signal Output


Model: JS-304S


Junson' Electric cabinet lock passed CE certificate, available in various cabinet, like intelligent storage cabinet, file cabinet, mechanical device.

Specifications:


Lock Dimension69.5L*64.5W*13H (mm)
Lockpin length29.5mm
Working Typelocked when power off
Materials:Steel housing / fine copper coils
Voltage12V or 24V (customized )
Operation Humidity0-80℃
Consuming power1.2W
Signal outNO output, or NC output (optional)
Open time1S
Continue power on≦10S
Operation temperature-40℃ -50℃
Working Current:1A/12V, 0.5A / 24V
Temperature raise60K
Weight:0.16kg/pcs
Availableintelligent storage cabinet, mechaincal device
Packing:100pcs/ carton
Carton size:50L*30W*21H (cm)

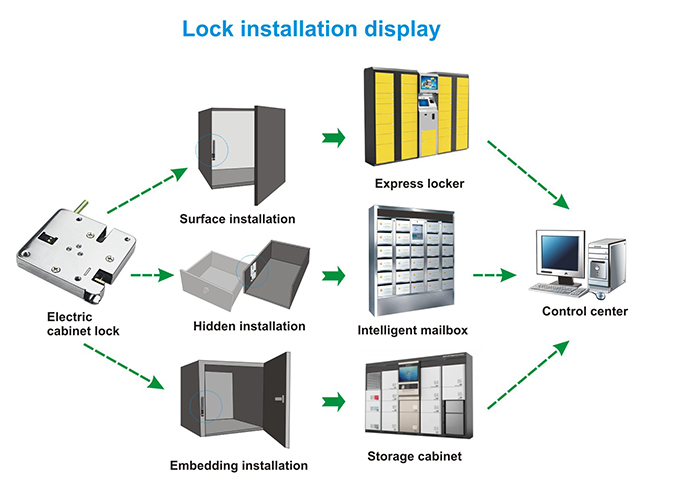

Electric Cabinet lock Usage

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock



Main Feature:

  1. Small Volume, light weight, Less power consumption, Easy installation

  2. Standby charging does not exceed 10S

  3. Available for various cabinet, like intelligent storage cabinet, mechanical device.

  4. With small with connector, and 20mm wires, easy to connect to the control board.

  5. With mico switch, for door sensor signal out, NO output, NC need to customize

  6. With access control, remote control or special access control capabilities.

  7. Metal housing, With Emergency open switch hidden, can open by hand in emergency condition

  8. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.

  9. Safety, bolt’s holding force at 150kg.








The Assemble workshop for Electric cabinet lock

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock




Quality Guarantee:

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty for relative products.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
