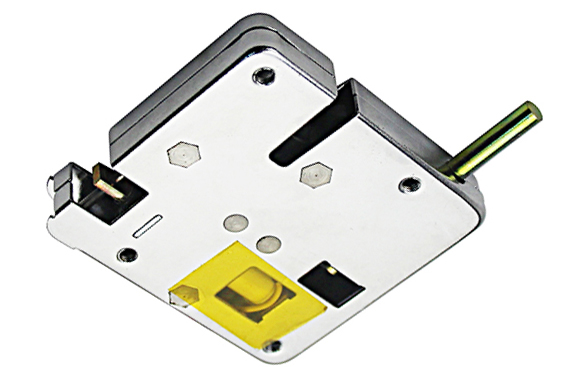

Durable and Popular Convenient Mini Solenoid lock Automatic open door
MODEL: JS-304
JUNSON's Electric cabinet lock with fine copper coils, durable steel housing, have CE certificate, were salsed over more than 100 countries.
Product Description
| Lock Dimension | 69.5L*64.5W*13H (mm) |
| Lockpin length | 29.5mm |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V |
| Working Current: | 1A |
| Consuming power | 1.2W |
| Signal out | NO/COM for JS-304S |
| Open time | 1S |
| Continue power on | ≦10S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight: | 0.1kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 50L*30W*21H (cm) |

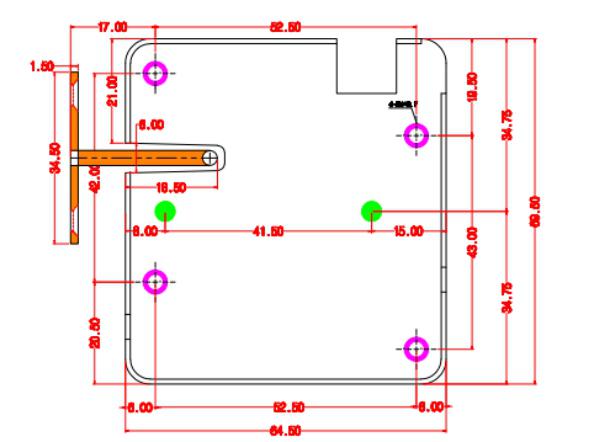

Main Size Drawing:
Main Feature:
Solenoid driven, support 12V
small and exquisite ,installation easily,
Silence rubber mat to reduce noise of unlocking.
Widely used for locking electronic lockers, smart express cabinet, vending machines, electronic newspaper boxes and etc.
Continues electrify no longer than 10S, to prevent the burn the coil
With small with connector, and 20mm wires, easy to connect to the control board.
Workable with access control, remote control or special access control power.
With Emergency open switch hidden, can open by hand in emergency condition
Bolt’s holding force at 150kg
In the super-thin design, the lock will save much more room for the products in the case while saving raw materials.
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
